GraalVM Tools for Java
- Extension Installation
- GraalVM Installation Wizard
- Set Default Java Runtime
- Java Development and Debugging
- Integration with VisualVM
- Native Image Support
- Extension Settings
GraalVM Tools for Java extension provides capabilities to manage GraalVM installations and its components in VS Code and/or locally. The extension ships a GraalVM installation and configuration wizard. You can conveniently set up the default Java runtime to GraalVM JDK which comes with both just-in-time (Graal) and ahead-of-time (Native Image) compilers, making VS Code a comfortable and convenient integrated environment.
The GraalVM Tools for Java in combination with the GraalVM Tools for Micronaut brings native support for the Micronaut framework in VS Code and opens many more possibilities for Java developers.
Note: The extension is a Technology Preview. The development team is actively working on further improvements to provide better usability for developers.
Extension Installation #
To install the GraalVM Tools for Java extension in VS Code, do the following:
- Navigate to Extensions in the Activity Bar.
- Search for “GraalVM” in the search field.
- Once found, click Install. That action installs the GraalVM Tools for Java extension from the VS Code Marketplace.
- Reload when required.
The extension depends on the Apache NetBeans Language Server. (VS Code installs it for you.) When the extension (and its dependent) is installed, VS Code displays the Gr icon in the Activity Bar on the left.
GraalVM Installation Wizard #
You can easily install GraalVM in VS Code by using the built-in installation wizard.
To start, click the Gr icon in the Activity Bar. You can either add an existing GraalVM installation (if you already have GraalVM), or download it immediately from within VS Code. A dialogue window suggests these options:
- Download & Install GraalVM
Add Existing GraalVM
The Download & Install GraalVM action is recommended as it eliminates the fuss around setting up environment variables for you.
Each registered GraalVM installation displays its location and all its available components. Components are either installed or available for download - the context actions to install (the plus icon) or remove (the bucket icon) are displayed when hovering over component’s name. All registered GraalVM installations will be listed in the configuration file under File > Preferences > Settings (Code > Preferences > Settings on macOS).
This installation model permits multiple GraalVMs at the same time and enables a quick removal of unnecessary GraalVM installations from VS Code global storage or even from your local disk.
Add Existing GraalVM #
Use the Add Existing GraalVM action to select an existing GraalVM installation. You are prompted to set the GraalVM installation as default, and to install additional components, if not already installed. Add Existing GraalVM can also be invoked by using an icon on the side of the GRAALVM: INSTALLATIONS panel.
Download and Install GraalVM Community #
Follow these steps to download and install GraalVM Community Edition:
- Pick the GraalVM distribution: Community (free for all purposes).
- Pick the GraalVM version: one of the latest major stable releases, or the latest development snapshot.
- Pick one of the available Java versions.
- Select the destination folder.
The installation starts immediately. The wizard downloads the package from Github in the background and display progress.
Once you confirm, you are taken to the selection list:
Download and Install GraalVM Enterprise #
Installing GraalVM Enterprise requires a user to provide a valid email address and accept the Oracle Technology Network License Agreement GraalVM Enterprise Edition Including License for Early Adopter Versions.
Follow these steps to download and install GraalVM Enterprise:
- Pick the GraalVM distribution: Enterprise (free for evaluation and development).
- Pick the GraalVM version: one of the latest major stable releases.
- Pick one of the available Java versions.
- Select the destination folder.
Provide a valid email address where the license should be sent or enter the existing download token.
Supposedly, this is your first installation and you have not accepted the license yet. Press

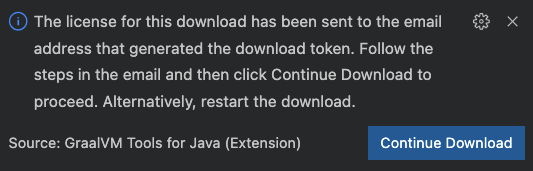

Enter. Once the email address is entered, you see this popup in the bottom right corner:
You are sent an email to verify your email address and accept the license.
Go to your email client and review the Oracle Technology Network License Agreement GraalVM Enterprise Edition Including License for Early Adopter Versions.
Accept the license. You confirm the license acceptance and generating a download token simultaneously.

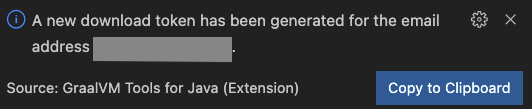

Return to VS Code and press Continue Download to continue. Your download token is then generated and saved by default in the
.gu/configfile in user’s home directory (you can update the storage location later, see below).
The download and installation of GraalVM Enterprise starts. The installation wizard downloads a package from Oracle’s storage point.

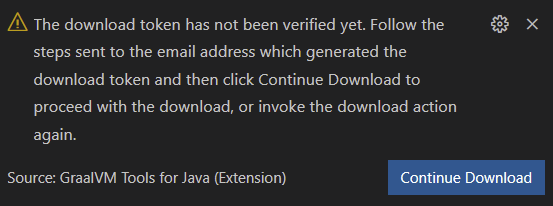

If you clicked Continue Download without accepting the license, you would see the following warning:
Note: If your machine is behind a proxy, you must set your environment variables (
https_proxy) appropriately. You can use the quick command Setup Proxy.
Show Current Download Configuration
There is a quick action to determine the location of an existing download token (default location, system property, user-defined file), and to copy it into the clipboard. Once copied you can re-use the download token, for example, (1) to install GraalVM Enterprise or its component on another computer; (2) to integrate into CI/CD build pipelines, etc.

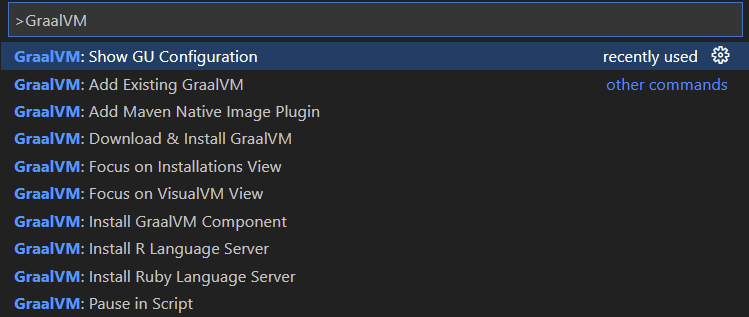

Go to View, then Command Palette and search for GraalVM: Show GU Configuration:

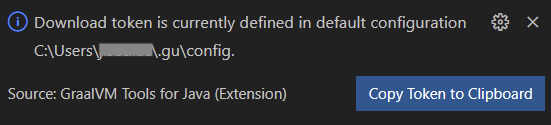

Click GraalVM: Show GU Configuration. You see the popup window with a similar content:
Copy the download token.
Define a Custom File
If you would like to define a custom file containing a download token, you can do that in VS Code.
- Go to VS Code Preferences, then Settings.
- Open the GraalVM for Java extension settings and find the GU field.

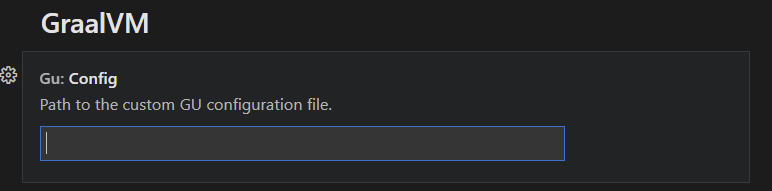

Provide a custom file containing the download token:
Set Default Java Runtime #
When the installation is complete, the Set Default Java action is invoked.
To set a newly added GraalVM active, click the home icon by the side of the installation name.
Select both Set as JAVA for Terminal options (
PATH) in the Configure active GraalVM window:
Alternatively, you can invoke the same action from View, then Command Palette (use the
Ctrl+Shift+P hot keys combination for Linux, and
Command+Shift+P for macOS to open the commands palette), and search for “GraalVM”.
You see GraalVM: Set Active GraalVM Installation among other actions.
Java Development and Debugging #
The Apache NetBeans Language Server, installed on par with the extension, enables the Java language support.
There are several Java launch configurations available by default. In addition to regular features enabled, GraalVM Tools for Java provides support for ahead-of-time compilation with GraalVM Native Image, Java-like debugging of a native executables, integration with VisualVM, and, lastly, polyglot programming (check here).
You can use the Extension Pack for Java from Microsoft if you prefer it instead of the default Apache NetBeans Language Server (see Java in VS Code to get started). If VS Code detects the Extension Pack for Java from Microsoft installed, it deactivates the Apache NetBeans Language Server.
Integration with VisualVM #
The GraalVM Tools for Java extension provides integration with VisualVM, the all-in-one Java (and polyglot) monitoring and troubleshooting tool. VisualVM brings powerful yet easy-to-use visual Java tooling to VS Code.
When you run a Java application, the process ID is detected automatically and displayed in the VISUALVM pane. Open VisualVM by just clicking the play button:
For more information, see the dedicated guide how to start using VisualVM from within VS Code.
Native Image Support #
Note: Support for GraalVM Native Image becomes available when you add Native Image component to your GraalVM installation.
GraalVM Tools for Java extension provides the NATIVE IMAGE with Agent pane to automate the process of tracking and registering dynamic feature calls, making it easier to configure and build a native executable in VS Code. The tracing agent tracks dynamic feature calls whilst your application is running on a JVM, and records those calls into JSON configuration files.
Note: The NATIVE IMAGE pane shows up when you open your Java project in VS Code.
Note: The support for the Native Image agent is experimental.
In the next section you learn how to build a native executable of a Java application and apply the Tracing agent in VS code.
To build a native executable of your Java application in VS Code, do the following:
- Create the launch.json file. If not already created, create a new file from the Run and Debug activity panel using the create a launch.json file link. Select the Java 8+ environment when asked. Save the launch.json file after editing it.
Enable the Tracing agent. Click Gr in the left sidebar and expand the NATIVE IMAGE pane. Expand Agent and click the edit button to configure its state.
Select enabled so the Native Image agent starts with the Java process:
Note: The state is not remembered: if you close the VS Code window, it will change back to disabled.
- Run your Java application on the GraalVM runtime. Open Run and Debug activity panel (click the bug icon in the left sidebar), choose the Launch Java 8+ App configuration and click Run Without Debugging to start the current project.
Note: Do not click the Start Debugging action to start a project. The Tracing agent is not compatible with the debugger agent and running such a configuration will fail.
Specify the output folder for configuration files to be generated. During the execution, the agent interfaces with a JVM to intercept all calls that look up classes, methods, fields, resources, or request proxy accesses. The agent generates configuration files containing all intercepted dynamic accesses and and stores them in the output folder you specify. When you start the project, VS Code asks you to select the desired location. The following choices are available:
META-INF/native-image- the default location in project sources to store the configuration files
/tmp- the configuration files will be stored to the
- Custom folder - the configuration files will be stored in the custom folder you specify
- Generate load to the running process to invoke more code and generate the best configuration.
- Once all possible execution paths have been executed, terminate the process. At this point the Tracing agent dumps the collected configuration to the selected output folder.
Go to Terminal, and click New Terminal. To build a native executable from a Java class file in the current working folder, use the following command:
native-image [options] class [imagename]
If you project is Maven or Gradle based, there are dedicated Maven or Gradle plugins to add support for building and testing native executables written in Java. For more documentation, go to:
If you use the Micronaut framework to create your Java project, you can build a native executable of a Micronaut application using VS Code quick actions. Go here to learn how.
Building Native Images on Windows #
To use Native Image on Windows, you need Visual Studio Build Tools with Windows SDK installed.
native-image builder only works when it is executed from the x64 Native Tools Command Prompt. Check this link for more details.
For Windows users, the extension provides a pre-configured x64 command prompt using Microsoft Developer Tools. Assuming you already have Visual Studio Build Tools with Windows SDK, GraalVM with Native Image installed, and opened your Java project in VS Code.
In the NATIVE IMAGE pane, click on right arrow, >:
It opens a dialog window asking you to select an existing Windows SDK build tools configuration script (
vcvars64.bat) from the default installation location, or to select a custom configuration script. VS Code detects the script and pre-populate the path.
Click enter. A new Terminal window opens running inside the x64 native tools command prompt.
Note that the path to Windows SDK build tools is saved globally, so next time you open a New Terminal from the NATIVE IMAGE pane, it will run inside the x64 native tools command prompt.
native-imagebuilder, for example, check the version:
Learn more about GraalVM Native Image here.
Extension Settings #
The GraalVM Tools for Java extension contributes the following settings in VS Code:
- graalvm.home - the path to the GraalVM installation
- graalvm.installations - all registered GraalVM installations
- graalvm.systemDetect - detect GraalVM’s installation from the system environment variables
- graalvm.languageServer.currentWorkDir - an absolute path to the working folder of GraalVM’s Language Server Protocol
- graalvm.languageServer.start - start GraalVM’s Language Server Protocol within processes being run or debugged
- graalvm.languageServer.delegateServers - a comma-separated list of
language@[host:]portwhere other language servers run
- graalvm.languageServer.startRLanguageServer - start the R Language Server
- graalvm.languageServer.startRubyLanguageServer - start the Ruby Language Server
Provide Feedback or Seek Help #
